【zookeeper 编程】 - 处理状态变化

下面通过一个示例演示, 如何监听一个node并接收和处理状态变更.

监听和处理事件

---

要实现监听, 首先需要实现Watcher接口:

public interface Watcher {
    void process(org.apache.zookeeper.WatchedEvent watchedEvent);

    static interface Event {
        ...
    }
}

然后再使用ZooKeeper(String connectString, int sessionTimeout, Watcher watcher)创建实例同时设置Watcher, 当有事件发生的时候, 那么Watcher.process(WatchedEvent watchedEvent) 将会被调用以处理事件, 比如连接、过期、中断、node 修改、子node修改等事件。

代码示例:

@Override
public void process(WatchedEvent event) {
    String path = event.getPath();
    if (event.getType() == Event.EventType.None) {
        // We are are being told that the state of the
        // connection has changed
        switch (event.getState()) {
        case SyncConnected:
            // In this particular example we don't need to do anything
            // here - watches are automatically re-registered with
            // server and any watches triggered while the client was
            // disconnected will be delivered (in order of course)
            break;
        case Expired:
            // It's all over
            dead = true;
            listener.closing(KeeperException.Code.SessionExpired);
            break;
        }
    } else {
        if (path != null && path.equals(znode)) {
            // Something has changed on the node, let's find out
            zk.exists(znode, true, this, null);
        }
    }
    if (chainedWatcher != null) {
        chainedWatcher.process(event);
    }
}

StatCallback

---

上面的代码中有一个 exists(), 主要是进行检查node的状态并处理变更, 源码如下:

public void exists(final String path, Watcher watcher,
        StatCallback cb, Object ctx)
{
    final String clientPath = path;
    PathUtils.validatePath(clientPath);

    // the watch contains the un-chroot path
    WatchRegistration wcb = null;
    if (watcher != null) {
        wcb = new ExistsWatchRegistration(watcher, clientPath);
    }

    final String serverPath = prependChroot(clientPath);

    RequestHeader h = new RequestHeader();
    h.setType(ZooDefs.OpCode.exists);
    ExistsRequest request = new ExistsRequest();
    request.setPath(serverPath);
    request.setWatch(watcher != null);
    SetDataResponse response = new SetDataResponse();
    cnxn.queuePacket(h, new ReplyHeader(), request, response, cb,
            clientPath, serverPath, ctx, wcb);
}

public void exists(String path, boolean watch, StatCallback cb, Object ctx) {
    exists(path, watch ? watchManager.defaultWatcher : null, cb, ctx);
}

获取 Stat的 exists() API docs:

org.apache.zookeeper.ZooKeeper
public Stat exists(String path,
                   boolean watch)
           throws KeeperException,
                  InterruptedException

Return the stat of the node of the given path. Return null if no such a node exists.
If the watch is true and the call is successful (no exception is thrown), a watch will be left on the node with the given path. The watch will be triggered by a successful operation that creates/delete the node or sets the data on the node.
Parameters:
path - the node path
watch - whether need to watch this node
Returns:
the stat of the node of the given path; return null if no such a node exists.
Throws:
KeeperException - If the server signals an error
InterruptedException - If the server transaction is interrupted.

从上可知, 我们需要传入一个StatCallback的实现, 进行 node state 改变的相关处理， org.apache.zookeeper.AsyncCallback.StatCallback接口定义如下 :

public interface AsyncCallback {
    interface StatCallback extends AsyncCallback {
        public void processResult(int rc, String path, Object ctx, Stat stat);
    }

    interface DataCallback extends AsyncCallback {
        public void processResult(int rc, String path, Object ctx, byte data[],
                Stat stat);
    }

    interface ACLCallback extends AsyncCallback {
        public void processResult(int rc, String path, Object ctx,
                List<ACL> acl, Stat stat);
    }

    interface ChildrenCallback extends AsyncCallback {
        public void processResult(int rc, String path, Object ctx,
                List<String> children);
    }

    interface Children2Callback extends AsyncCallback {
        public void processResult(int rc, String path, Object ctx,
                List<String> children, Stat stat);
    }

    interface StringCallback extends AsyncCallback {
        public void processResult(int rc, String path, Object ctx, String name);
    }

    interface VoidCallback extends AsyncCallback {
        public void processResult(int rc, String path, Object ctx);
    }
}

实现代码举例:

@Override
public void processResult(int rc, String path, Object ctx, Stat stat) {
    boolean exists;
    switch (rc) {
    case Code.Ok:
        exists = true;
        break;
    case Code.NoNode:
        exists = false;
        break;
    case Code.SessionExpired:
    case Code.NoAuth:
        dead = true;
        listener.closing(rc);
        return;
    default:
        // Retry errors
        zk.exists(znode, true, this, null);
        return;
    }

    byte b[] = null;
    if (exists) {
        try {
            b = zk.getData(znode, false, null);
        } catch (KeeperException e) {
            // We don't need to worry about recovering now. The watch
            // callbacks will kick off any exception handling
            e.printStackTrace();
        } catch (InterruptedException e) {
            return;
        }
    }
    if ((b == null && b != prevData)
            || (b != null && !Arrays.equals(prevData, b))) {
        // TODO
    }
}

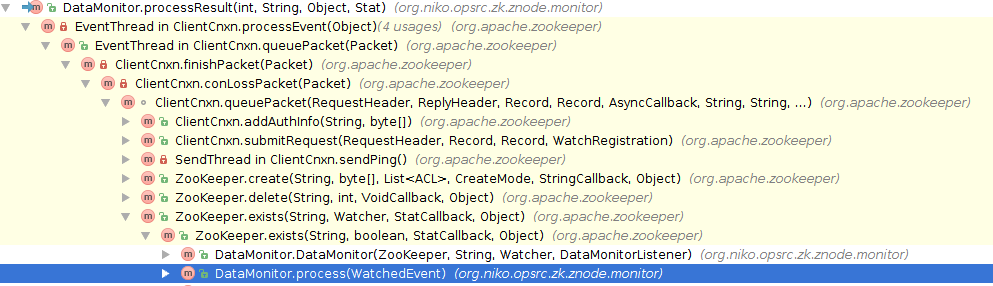

processResult() 的调用关系图如下:

可知, 当执行以下动作时, processResult()将会被调用 (因为 node state changed):

ZooKeeper.create(String, byte[], List<ACL>, CreateMode, StringCallback, Object)
ZooKeeper.delete(String, int, VoidCallback, Object)
ZooKeeper.exists(String, Watcher, StatCallback, Object)
等等...

然后在processResult()里面我们就可以处理变更的node了.

示例源码

---

最后， 附上官网的 example 源码， 可以运行以下的代码体验一下更深刻:

DataMonitor

主要用来进行事件处理 process(WatchedEvent event)和 state changed 处理 processResult(int rc, String path, Object ctx, Stat stat).

public class DataMonitor implements Watcher, StatCallback {

    ZooKeeper zk;

    String znode;

    Watcher chainedWatcher;

    boolean dead;

    DataMonitorListener listener;

    byte prevData[];

    public DataMonitor(ZooKeeper zk, String znode, Watcher chainedWatcher,
            DataMonitorListener listener) {
        this.zk = zk;
        this.znode = znode;
        this.chainedWatcher = chainedWatcher;
        this.listener = listener;
        // Get things started by checking if the node exists. We are going
        // to be completely event driven
        zk.exists(znode, true, this, null);
    }

    /**
     * Other classes use the DataMonitor by implementing this method
     */
    public interface DataMonitorListener {
        /**
         * The existence status of the node has changed.
         */
        void exists(byte data[]);

        /**
         * The ZooKeeper session is no longer valid.
         *
         * @param rc
         *                the ZooKeeper reason code
         */
        void closing(int rc);
    }

    @Override
    public void process(WatchedEvent event) {
        String path = event.getPath();
        if (event.getType() == Event.EventType.None) {
            // We are are being told that the state of the
            // connection has changed
            switch (event.getState()) {
            case SyncConnected:
                // In this particular example we don't need to do anything
                // here - watches are automatically re-registered with
                // server and any watches triggered while the client was
                // disconnected will be delivered (in order of course)
                break;
            case Expired:
                // It's all over
                dead = true;
                listener.closing(KeeperException.Code.SessionExpired);
                break;
            }
        } else {
            if (path != null && path.equals(znode)) {
                // Something has changed on the node, let's find out
                zk.exists(znode, true, this, null);
            }
        }
        if (chainedWatcher != null) {
            chainedWatcher.process(event);
        }
    }

    @Override
    public void processResult(int rc, String path, Object ctx, Stat stat) {
        boolean exists;
        switch (rc) {
        case Code.Ok:
            exists = true;
            break;
        case Code.NoNode:
            exists = false;
            break;
        case Code.SessionExpired:
        case Code.NoAuth:
            dead = true;
            listener.closing(rc);
            return;
        default:
            // Retry errors
            zk.exists(znode, true, this, null);
            return;
        }

        byte b[] = null;
        if (exists) {
            try {
                b = zk.getData(znode, false, null);
            } catch (KeeperException e) {
                // We don't need to worry about recovering now. The watch
                // callbacks will kick off any exception handling
                e.printStackTrace();
            } catch (InterruptedException e) {
                return;
            }
        }
        if ((b == null && b != prevData)
                || (b != null && !Arrays.equals(prevData, b))) {
            listener.exists(b);
            prevData = b;
        }
    }
}

Executor

启动程序和初始化, 根 Watcher，资源管理：

public class Executor
        implements Watcher, Runnable, DataMonitor.DataMonitorListener
{
    String znode;

    DataMonitor dm;

    ZooKeeper zk;

    String filename;

    String exec[];

    Process child;

    public Executor(String hostPort, String znode, String filename,
                    String exec[]) throws KeeperException, IOException {
        this.filename = filename;
        this.exec = exec;
        zk = new ZooKeeper(hostPort, 3000, this);
        dm = new DataMonitor(zk, znode, null, this);
    }

    /**
     * @param args
     */
    public static void main(String[] args) {
        if (args.length < 4) {
            System.err
                    .println("USAGE: Executor hostPort znode filename program [args ...]");
            System.exit(2);
        }
        String hostPort = args[0];
        String znode = args[1];
        String filename = args[2];
        String exec[] = new String[args.length - 3];
        System.arraycopy(args, 3, exec, 0, exec.length);
        try {
            new Executor(hostPort, znode, filename, exec).run();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    /***************************************************************************
     * We do process any events ourselves, we just need to forward them on.
     *
     * @see org.apache.zookeeper.Watcher#process(org.apache.zookeeper.proto.WatcherEvent)
     */
    @Override
    public void process(WatchedEvent event) {
        dm.process(event);
    }

    public void run() {
        try {
            synchronized (this) {
                while (!dm.dead) {
                    wait();
                }
            }
        } catch (InterruptedException e) {
        }
    }

    public void closing(int rc) {
        synchronized (this) {
            notifyAll();
        }
    }

    static class StreamWriter extends Thread {
        OutputStream os;

        InputStream is;

        StreamWriter(InputStream is, OutputStream os) {
            this.is = is;
            this.os = os;
            start();
        }

        public void run() {
            byte b[] = new byte[80];
            int rc;
            try {
                while ((rc = is.read(b)) > 0) {
                    os.write(b, 0, rc);
                }
            } catch (IOException e) {
            }

        }
    }

    @Override
    public void exists(byte[] data) {
        if (data == null) {
            if (child != null) {
                System.out.println("Killing process");
                child.destroy();
                try {
                    child.waitFor();
                } catch (InterruptedException e) {
                }
            }
            child = null;
        } else {
            if (child != null) {
                System.out.println("Stopping child");
                child.destroy();
                try {
                    child.waitFor();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
            try {
                FileOutputStream fos = new FileOutputStream(filename);
                fos.write(data);
                fos.close();
            } catch (IOException e) {
                e.printStackTrace();
            }
            try {
                System.out.println("Starting child");
                child = Runtime.getRuntime().exec(exec);
                new StreamWriter(child.getInputStream(), System.out);
                new StreamWriter(child.getErrorStream(), System.err);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
    }
}

参考

---

ZooKeeper Programmer's Guide
https://zookeeper.apache.org/doc/r3.4.6/javaExample.html
