IR - 索引创建过程概述

在搜索方面,lucene 可谓是大名鼎鼎,为什么使用 lucene 可以做到这么快的搜索, 首先我们要先来了解一下倒排索引。

倒排索引


lucene 全文索引的搜索速度很快, 关键数据结构就是这个倒排索引, 那什么是倒排索引呢 ?

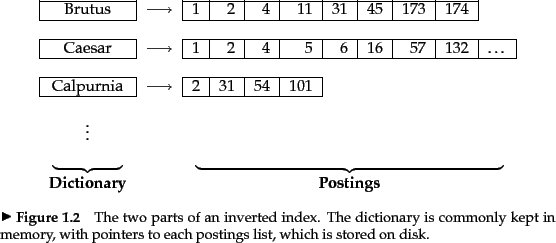

图片来自: http://nlp.stanford.edu/

如上图, 倒排索引, 顾名思义就是词 -> 文档作为一个反向(相对于文档 -> 词)的关系。可以看到, 左边有一个词典, 每个词指向一个文档链表, 称为 posting list ( 倒排表 )。

虽然索引构建和写入可能会比读慢,但索引只要一次构建了,以后就可以多次使用了。

创建过程


接下来开始索引文档。

准备要索引的文档


假设有一些要被索引的文档,比如:

文档一:

They drove luxurious cars and lived in splendid houses with their beautiful wives.

文档二:

As the carrier of the social culture and the art aesthetics, the Chinese ancient furniture has rich traditional culture connotation and shows different aesthetic ideology of different times.

文档 -> tokenizer (分词组件) -> token


我们将文档传给 tokenizer (分词组件), tokenizer 进行 tokenize 分词操作, 将文档分成一个个单词,去除标点符号和 stop word。
stop word 是指语言中普遍的词, 这些词没有什么特别的意义, 不足以成为文档的关键词,写入索引也会浪费空间,如 athe 等。
这里针对是英文的 tokenizer, 中文 tokenizer 会有不同的分词方法和 stop word 集合。

这一步 tokenizer 处理后的结果称为 token。

token -> Linguistic Processor -> term


linguistic processor (语言处理组件) 主要对 token 进行语言上的处理, 比如英语:

  • 转为小写
  • stemming 词干提取,如“cars”到“car”等这样的操作
  • lemmatization 词形还原, 如“drove”到“drive”等这样的操作

stemming 和 lemmatization 的不同之处在于:

  • stemming 使用一些固定算法对词进行缩减, 如去除复数stional -> tion等等
  • lemmatization 是使用已保存的字典映射来进行转换,如一些非常规的过去式和过去分词:written -> writeare is am -> be等,需要保存在映射中。

但 stemming 和 lemmatization 不是互斥关系, 有些词用两种方法都可以得到相同的结果。

这一步 linguistic processor 处理之后的结果叫做 term。

term -> indexer


现在我们可以把 term 和 其文档id 对应起来, 很明显,一个 term 可能对应多个文档, 把这些文档使用链表来串在一起, 就是我们的 Posting List,如上图所示。

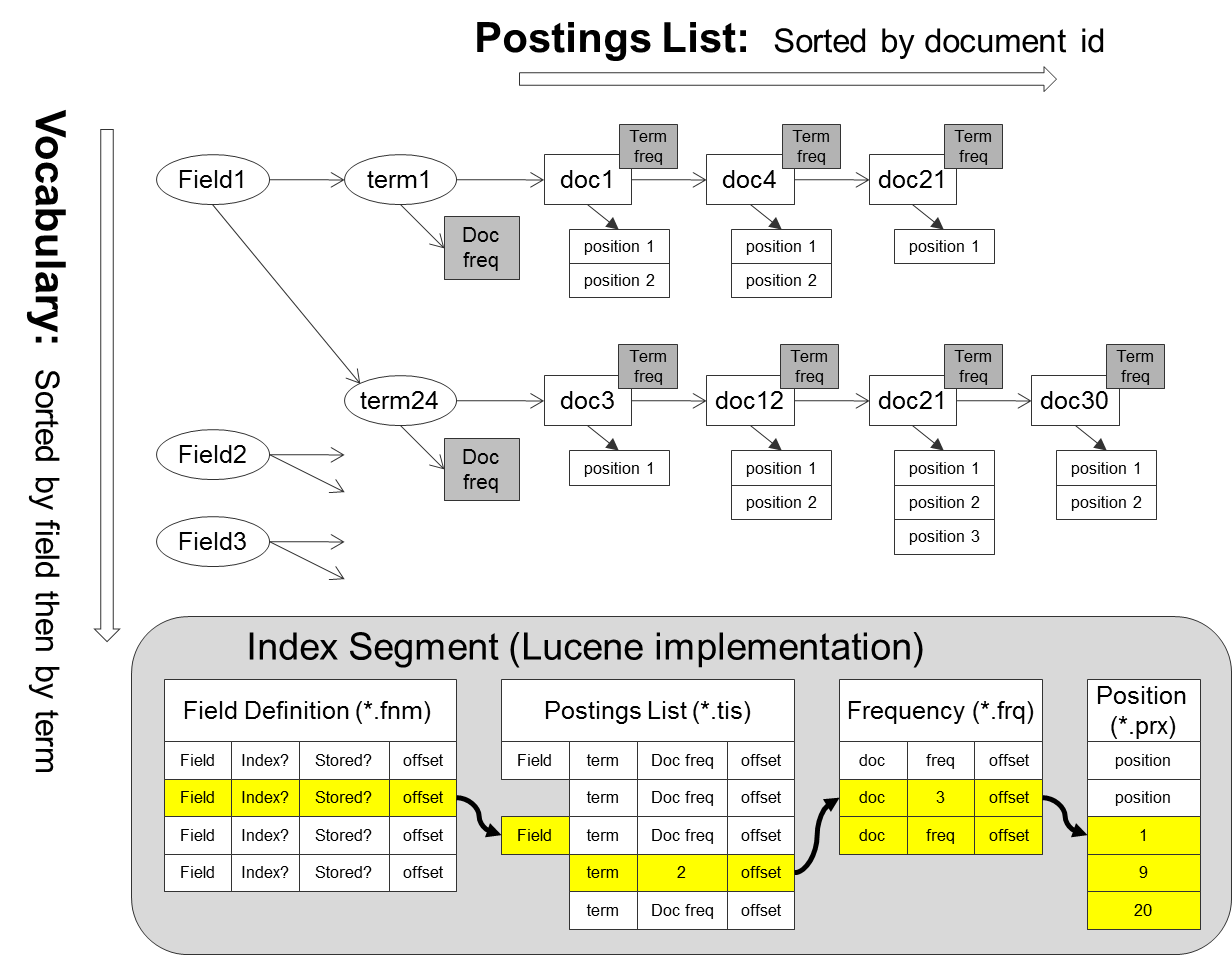

当然,实际中存储除了文档id,还有 Document FrequencyFrequency 等信息, 这些在后面搜索的时候会用到,如下图:

图片来自:http://horicky.blogspot.com/2013/02/text-processing-part-2-inverted-index.html

Document Frequency(文档频次),表示有多少文档包含这个 term。
Term Frequency (词频率),表示此 term 在此文档中有多少个。

Next


创建完索引后,接下来就可以进行搜索了,下一篇博客将简述索引搜索的过程。
