【Flink】 docker compose 体验不同版本

发表于

环境

想要尝试新版本的 flink, 但是又跟现有环境冲突, 比如 JDK 8 和 11, scala 2.11 和 2.22, Kafka 和 Zookeeper 版本以及数据的冲突和混用的危险, 这种情况就适合用 Docker 来解决了, 环境 版本 数据 等等问题都能得到较好的管理和隔离, 而且加上 compose / swarm / Kubernates 的支持, 管理效率极大提高.

官方示例 - flink-playgrounds/table-walkthrough

Flink 官方提供了一个 Docker Compose 的方式供我们试玩 Flink:
https://github.com/apache/flink-playgrounds

首先需要有 :

  • Java 8 or 11 (本地开发和构建 Flink 程序用)
  • Maven (本地开发和构建 Flink 程序用)
  • Docker (运行 JobManager TaskManager Kafka Zookeeper MySQL Grafana 等等容器)

Docker 和 Compose 准备

检查 docker 是否已经启动:
systemctl status docker.service

若无 docker compose 则需要安装 :

DOCKER_CONFIG=${DOCKER_CONFIG:-$HOME/.docker}
mkdir -p $DOCKER_CONFIG/cli-plugins
curl -SL https://github.com/docker/compose/releases/download/v2.16.0/docker-compose-linux-x86_64 -o $DOCKER_CONFIG/cli-plugins/docker-compose
chmod +x $DOCKER_CONFIG/cli-plugins/docker-compose
# for all users
# sudo chmod +x /usr/local/lib/docker/cli-plugins/docker-compose
docker compose version

构建 images

接着就可以 git clone 仓库:
git clone -b release-1.14 git@github.com:apache/flink-playgrounds.git
cd table-walkthrough

在 flink-playgrounds.git 中, 有一个文件 table-walkthrough/docker-compose.yml (文件部分内容如下), 定义了要用到的一些 services (JobManager TaskManager Kafka Zookeeper MySQL Grafana 等等), 它们的 images / 端口 / 环境变量 / 依赖关系等等. 详细说明文档可参考: Compose file version 2 reference

version: '2.1'
services:
  jobmanager:
    image: apache/flink-table-walkthrough:1-FLINK-1.14-scala_2.12
    build: .
    hostname: "jobmanager"
    expose:
      - "6123"
    ports:
      - "8082:8081"
    command: standalone-job
    environment:
      - JOB_MANAGER_RPC_ADDRESS=jobmanager
    depends_on:
      - kafka
      - mysql
...
  kafka:
    image: wurstmeister/kafka:2.13-2.8.1
    ports:
      - "9092:9092"
    depends_on:
      - zookeeper
    environment:
      KAFKA_ADVERTISED_HOST_NAME: "kafka"
      KAFKA_ADVERTISED_PORT: "9092"
      HOSTNAME_COMMAND: "route -n | awk '/UG[ \t]/{print $$2}'"
      KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
      KAFKA_CREATE_TOPICS: "kafka:1:1"
....

其中可以看到上面 jobmanager 的 build: . , 会使用 table-walkthrough/Dockerfile 进行 image build, 将会编译和构建 table-walkthrough 这个目录下的 Maven 项目, 并和 Flink 库一起构成 docker image.

Dockerfile 文件:

FROM maven:3.8-jdk-8-slim AS builder

COPY ./pom.xml /opt/pom.xml
COPY ./src /opt/src
RUN cd /opt; mvn clean install -Dmaven.test.skip

FROM apache/flink:1.14.4-scala_2.12-java8

# Download connector libraries
RUN wget -P /opt/flink/lib/ https://repo.maven.apache.org/maven2/org/apache/flink/flink-sql-connector-kafka_2.12/1.14.4/flink-sql-connector-kafka_2.12-1.14.4.jar; \
    wget -P /opt/flink/lib/ https://repo.maven.apache.org/maven2/org/apache/flink/flink-connector-jdbc_2.12/1.14.4/flink-connector-jdbc_2.12-1.14.4.jar; \
    wget -P /opt/flink/lib/ https://repo.maven.apache.org/maven2/org/apache/flink/flink-csv/1.14.4/flink-csv-1.14.4.jar; \
    wget -P /opt/flink/lib/ https://repo.maven.apache.org/maven2/mysql/mysql-connector-java/8.0.19/mysql-connector-java-8.0.19.jar;

COPY --from=builder /opt/target/spend-report-*.jar /opt/flink/usrlib/spend-report.jar

RUN echo "execution.checkpointing.interval: 10s" >> /opt/flink/conf/flink-conf.yaml; \
    echo "pipeline.object-reuse: true" >> /opt/flink/conf/flink-conf.yaml; \
    echo "pipeline.time-characteristic: EventTime" >> /opt/flink/conf/flink-conf.yaml; \
    echo "taskmanager.memory.jvm-metaspace.size: 256m" >> /opt/flink/conf/flink-conf.yaml;

不过在执行构建之前, 我们需要实现 report() 方法 (table-walkthrough/src/main/java/org/apache/flink/playgrounds/spendreport/SpendReport.java):

public static Table report(Table transactions) {
    throw new UnimplementedException();
}

在其中加入业务逻辑, 这里进行简单的 groupBy account_id 和 log_ts :

public static Table report(Table transactions) {
    return transactions.select(
            $("account_id"),
            $("transaction_time").floor(TimeIntervalUnit.HOUR).as("log_ts"),
            $("amount"))
            .groupBy($("account_id"), $("log_ts"))
            .select(
                    $("account_id"),
                    $("log_ts"),
                    $("amount").sum().as("amount"));
}

然后就可以开始执行构建了:

➜  docker compose build

..
 => [internal] load build context                                                                                                            0.0s
 => => transferring context: 1.18kB                                                                                                          0.0s
 => [stage-1 1/4] FROM docker.io/apache/flink:1.14.4-scala_2.12-java8@sha256:07cd20e018e2180c90ec5cf8342f208d408fe28d871a0727c7e52099bbf80f  0.0s
 => [builder 2/4] COPY ./pom.xml /opt/pom.xml                                                                                                0.0s
 => [builder 3/4] COPY ./src /opt/src                                                                                                        0.1s
 => [builder 4/4] RUN cd /opt; mvn clean install -Dmaven.test.skip                                                                         225.9s
 => CACHED [stage-1 2/4] RUN wget -P /opt/flink/lib/ https://repo.maven.apache.org/maven2/org/apache/flink/flink-sql-connector-kafka_2.12/1  0.0s
 => [stage-1 3/4] COPY --from=builder /opt/target/spend-report-*.jar /opt/flink/usrlib/spend-report.jar                                      0.0s
 => [stage-1 4/4] RUN echo "execution.checkpointing.interval: 10s" >> /opt/flink/conf/flink-conf.yaml;     echo "pipeline.object-reuse: tru  0.5s
 => exporting to image                                                                                                                       0.4s
 => => exporting layers                                                                                                                      0.4s
 => => writing image sha256:5fa7a43cfb5aefabb6d86928bf265fd3f21382457658cc182c84a307cc0671cd                                                 0.0s
 => => naming to docker.io/apache/flink-table-walkthrough:1-FLINK-1.14-scala_2.12                                                            0.0s

完成之后, 可以看到新的 images:

➜  docker compose images
CONTAINER                            REPOSITORY                       TAG                       IMAGE ID            SIZE
table-walkthrough-data-generator-1   apache/data-generator            1                         4f1a70cd1617        283MB
table-walkthrough-grafana-1          grafana/grafana                  7.5.8                     6f31769d2f32        202MB
table-walkthrough-jobmanager-1       apache/flink-table-walkthrough   1-FLINK-1.14-scala_2.12   e7e4a6cfc1bd        664MB
table-walkthrough-kafka-1            wurstmeister/kafka               2.13-2.8.1                a692873757c0        468MB
table-walkthrough-mysql-1            mysql                            8.0.19                    0c27e8e5fcfa        546MB
table-walkthrough-taskmanager-1      apache/flink-table-walkthrough   1-FLINK-1.14-scala_2.12   e7e4a6cfc1bd        664MB
table-walkthrough-zookeeper-1        wurstmeister/zookeeper           3.4.6                     6fe5551964f5        451MB

启动 services

然后启动所有 services :
docker-compose up -d

可以看到启动的 services :

➜  docker compose ps
NAME                                 IMAGE                                                    COMMAND                  SERVICE             CREATED             STATUS              PORTS
table-walkthrough-data-generator-1   apache/data-generator:1                                  "/docker-entrypoint.…"   data-generator      33 minutes ago      Up 33 minutes
table-walkthrough-grafana-1          grafana/grafana:7.5.8                                    "/run.sh"                grafana             33 minutes ago      Up 33 minutes       0.0.0.0:3000->3000/tcp, :::3000->3000/tcp
table-walkthrough-jobmanager-1       apache/flink-table-walkthrough:1-FLINK-1.14-scala_2.12   "/docker-entrypoint.…"   jobmanager          8 minutes ago       Up 8 minutes        6123/tcp, 0.0.0.0:8082->8081/tcp, :::8082->8081/tcp
table-walkthrough-kafka-1            wurstmeister/kafka:2.13-2.8.1                            "start-kafka.sh"         kafka               33 minutes ago      Up 33 minutes       0.0.0.0:9092->9092/tcp, :::9092->9092/tcp
table-walkthrough-mysql-1            mysql:8.0.19                                             "docker-entrypoint.s…"   mysql               33 minutes ago      Up 33 minutes       3306/tcp, 33060/tcp
table-walkthrough-taskmanager-1      apache/flink-table-walkthrough:1-FLINK-1.14-scala_2.12   "/docker-entrypoint.…"   taskmanager         8 minutes ago       Up 8 minutes        6121-6123/tcp, 8081/tcp
table-walkthrough-zookeeper-1        wurstmeister/zookeeper:3.4.6                             "/bin/sh -c '/usr/sb…"   zookeeper           33 minutes ago      Up 33 minutes       22/tcp, 2888/tcp, 3888/tcp, 0.0.0.0:2181->2181/tcp, :::2181->2181/tcp

打开 Flink WebUI 可以查看运行中的 Jobs: http://localhost:8082/

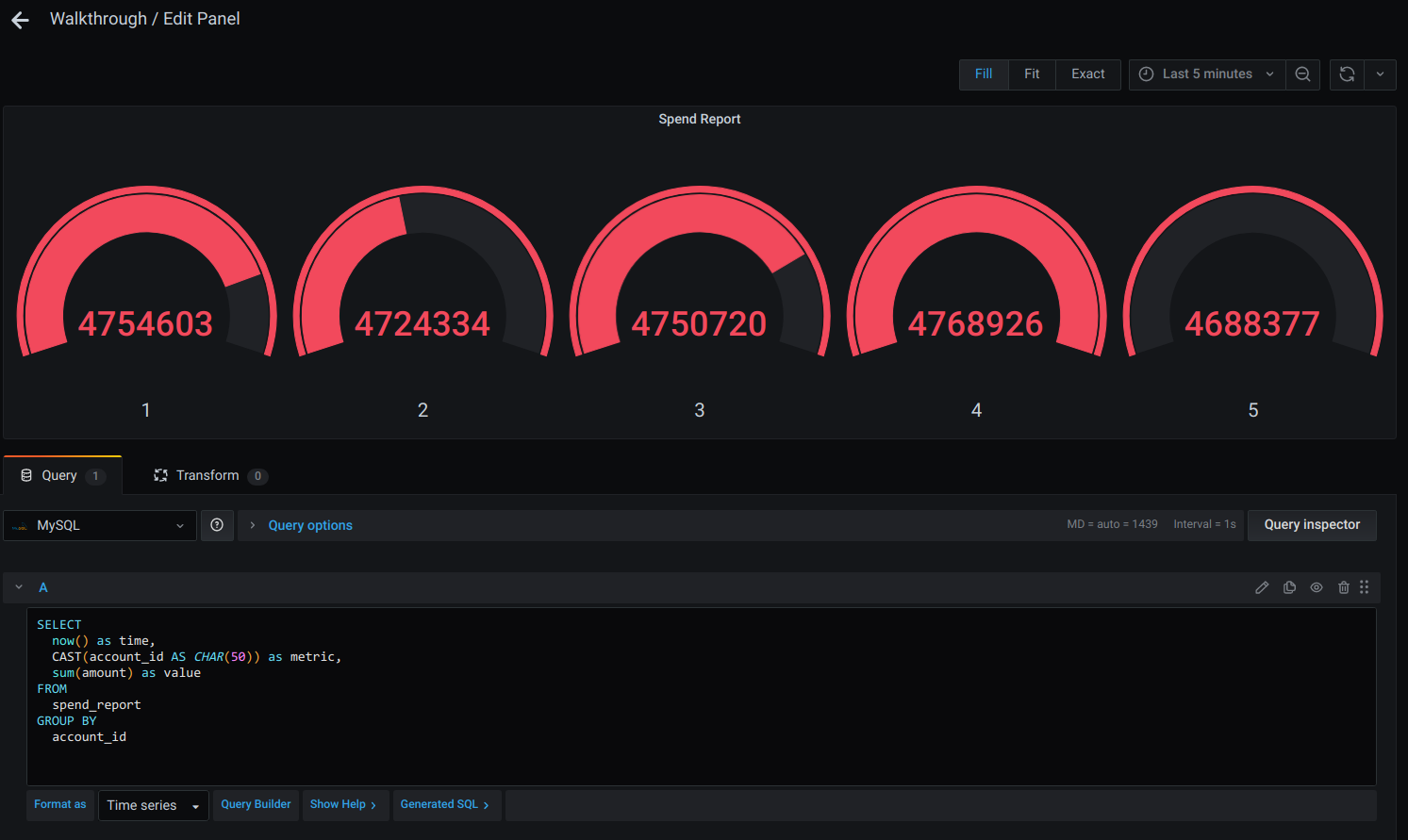

打开 Grafana 查看实时统计结果

MySQL 查询写入的数据 :

mysql> select * from spend_report limit 10;
+------------+-------------------------+--------+
| account_id | log_ts                  | amount |
+------------+-------------------------+--------+
|          1 | 2001-04-13 01:00:00.000 |   1056 |
|          1 | 2001-04-13 02:00:00.000 |   1606 |
|          1 | 2001-04-13 03:00:00.000 |   1475 |
|          1 | 2001-04-13 04:00:00.000 |   1338 |
|          1 | 2001-04-13 05:00:00.000 |    741 |
|          1 | 2001-04-13 06:00:00.000 |   1407 |
|          1 | 2001-04-13 07:00:00.000 |    613 |
|          1 | 2001-04-13 08:00:00.000 |   1286 |
|          1 | 2001-04-13 09:00:00.000 |    627 |
|          1 | 2001-04-13 10:00:00.000 |    732 |
+------------+-------------------------+--------+

想要停止时 : docker compose stop

示例中的 Dockerfile 构建起来还是比较慢的, 若有代码修改, 重新构建会重复浪费一些时间, 可以修改构建步骤, 比如把 mvn 部分独立出来.

参考

https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/try-flink/table_api/
